Your check-engine light, explained.

elm327obd turns a cheap ELM327 Wi-Fi adapter into a full OBD2 scanner in your terminal: trouble codes in plain English, live sensor data, readiness monitors and manufacturer PIDs. Free and open source for macOS and Linux.

Install elm327obd View the source

Look up a trouble code

The same guidance the app shows, for 2,066 generic codes. Nothing leaves your browser.

  • Try

Loading code list…

A live dashboard on the road

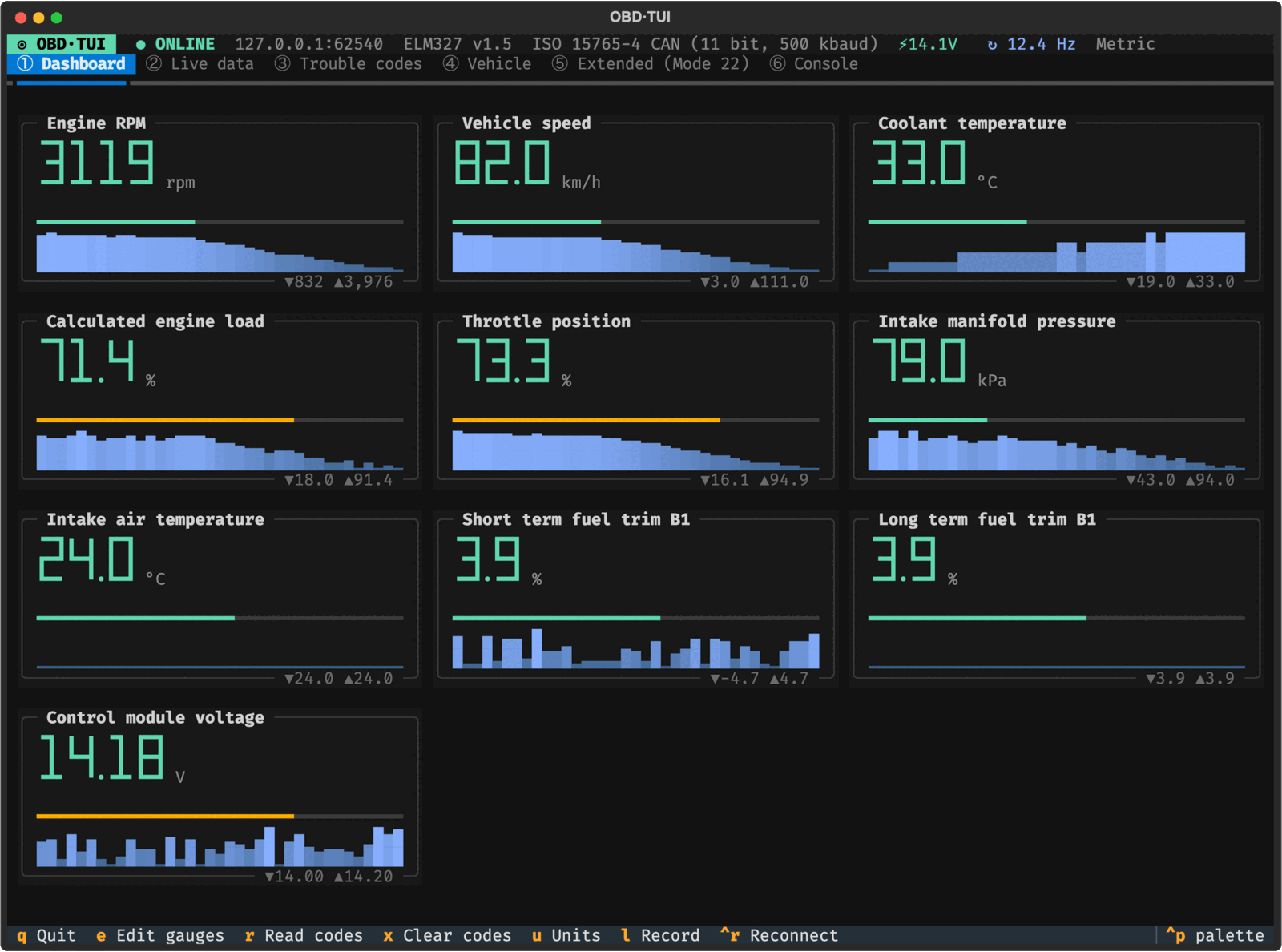

elm327obd dashboard in a terminal: engine RPM, vehicle speed, coolant temperature, engine load, throttle, manifold pressure, intake air temperature, fuel trims and module voltage, each with a sparkline and min/max
Pick the gauges you care about. Requests are batched, so most adapters refresh at 10 Hz or more over Wi-Fi, and cheap clones that choke on batching get stepped down automatically.

What it reads

Trouble codes from every module
Stored, pending and permanent codes from the engine, transmission and every other module that answers, sorted most urgent first with likely causes and what to check.
Live data
Every Mode 01 PID your car supports, with min/max and a trend line, plus CSV recording for a drive you want to look at later.
Readiness monitors
See whether the car would pass an emissions inspection before you take it in, along with freeze frame, VIN and calibration IDs.
Manufacturer PIDs (Mode 22)
Profiles for Ford, GM and Hyundai/Kia, your own TOML profiles for anything else, and a read-only scanner to find what a module answers.
A raw console
Send AT and OBD commands and see decoded replies. Anything that could write to or reset a module asks first.
Demo mode
No adapter yet? obd --demo runs the whole app against a simulated car, with a few trouble codes to explore.

Getting connected

  1. Plug in the adapter

    The OBD port is under the dash on the driver's side. Turn the ignition on; the engine can be running or not.

  2. Join its Wi-Fi

    Usually named WiFi_OBDII, V-LINK or OBDII, with no password or 12345678. You'll lose internet while connected; that's normal.

  3. Run obd

    It finds the adapter on the usual addresses and connects. If it finds more than one, you pick.

Install

You need Python 3.11 or newer. Install it from PyPI with pipx (or uv tool install elm327obd) and you get an obd command. To hack on it, clone the repo and run ./setup.sh.

  • macOS: tested. brew install python if you need it.
  • Linux: tested on Debian 12. Debian/Ubuntu also need python3-venv.
  • Windows: not supported; WSL is untested.
pipx install elm327obd

# try it without a car
obd --demo

# explain codes offline
obd explain P0171 P0420

What it won't do

It reads data and reads and clears codes. It doesn't reflash or tune ECUs, and an ELM327 isn't the right tool for that: flashing needs a reliable high-speed interface, the manufacturer's security access and the right calibration files, and a Wi-Fi dropout halfway through can leave a module unusable.

The code guidance is general automotive advice, not a diagnosis for your car. A flashing check-engine light always means pull over.
